AIR HANDLING UNIT WANAS 900H

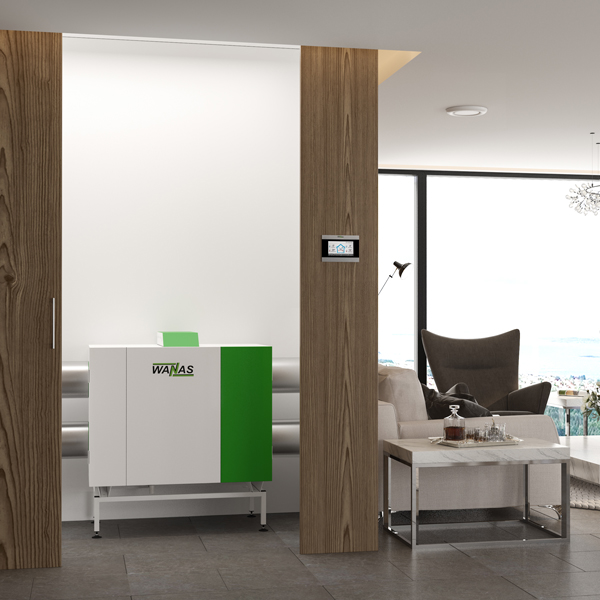

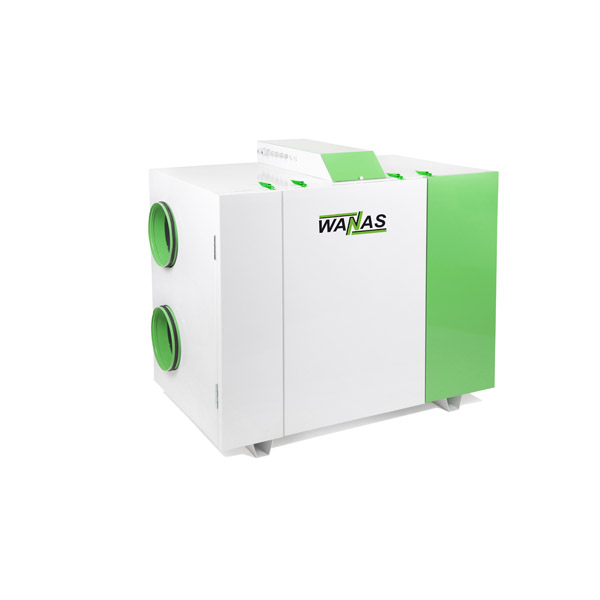

The WANAS 900H recuperator is a compact ventilation unit with a horizontal nozzle system used for ventilation of single-family houses or small service facilities.

It is characterized by very low energy consumption, quiet operation, high thermal efficiency and easy operation. The control panel was designed by a team of engineers manufactured by WANAS and made with attention to the smallest details, equipped with a number of excellent features to enjoy high comfort of use. It is designed for ventilating rooms with an area of up to 440 m2.

Each recuperator is equipped with a weekly touch controller and WANAS MOBILE CONTROL W-15 module for remote control of the control panel via the Internet.

 Air handling units produced by our company have:

  • weekly programme
  • bypass control
  • 3 algorithms securing the exchanger against freezing
  • "fireplace" and "party" mode
  • secondary heater control
  • ground-coupled heat exchanger control
  • full-range (1-100%) efficiency adjustment
  • possiblle control based on humidity and COsensors
  • possible gas boiler control
  • possible connection via alarm central unit or bathroom switch to switch over operation to speed I or III
  • on-line remote control
  • filter replacement alert
  • flush and surface mounting

UEC (unit energy consumption) class* - A+
UEC for moderate climate kWh/(m2/year)
-39,39
UEC for cool climate kWh/(m2/year)
-77,31
UEC for warm climate
kWh/(m2/year)
-15,04
Max. flow rate (at 100 Pa) m3/h 1065
Acoustic power dBA 38-56
External static pressure (at 900 m3/h)
Pa 230
Energy consumption W 38-405
Pre-heater power W 3 500
Power supply V/Hz 230/50
Stub pipe diameter mm 250
Max. efficiency % 96,20
Efficiency according UE 1254/2014, dT=13°C, SWM % 86,20
Height
mm
1080
Width mm 1184
Depth mm 720
Weight kg 146
Filter class - G4

*When a humidity or COsensor is used.













- external fresh air

B - air extraction from rooms

C - air supply to rooms

D - spent air discharge to the outside
